Okta Workflows How-To: Read a JSON path with dot-notation

Okta Workflows is a no-code platform for automating identity processes. The Workflows team holds weekly office hours where they answer builder questions.

This blog post is based on a question asked during office hours: How to read a JSON path with dot-notation in Workflows?

Getting started

As you build Workflows automation, you will likely need to read values from a JSON object. For example, from an external API endpoint that returns data as JSON. Workflows have two cards to help read (retrieve) values from JSON:

• Object – Get
• Object – Get Multiple

Use the following JSON to show how the cards work.

{
    "product": "ice cream",
    "ingredients": {
        "ingredient": [{
                "id": 100,
                "type": "chocolate"
            },
            {
                "id": 200,
                "type": "vanilla"
            },
            {
                "id": 300,
                "type": "caramel"
            }
        ]
    },
    "shop": {
        "inventory": {
            "instock": 100,
            "ordered": 50
        }
    }
}

The dot-notation is a path that corresponds to an item in JSON.

For example, a path of product will return:

ice cream

Using the Object – Get card to read JSON

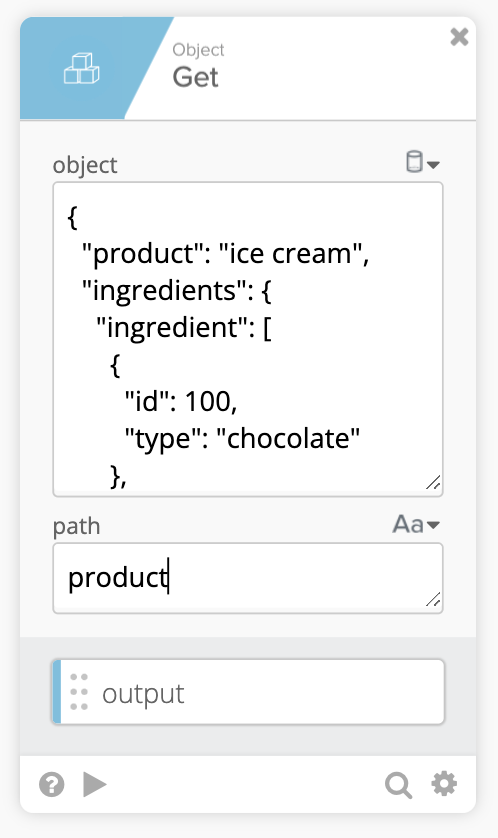

In Workflows, use the Object – Get to read a JSON path:

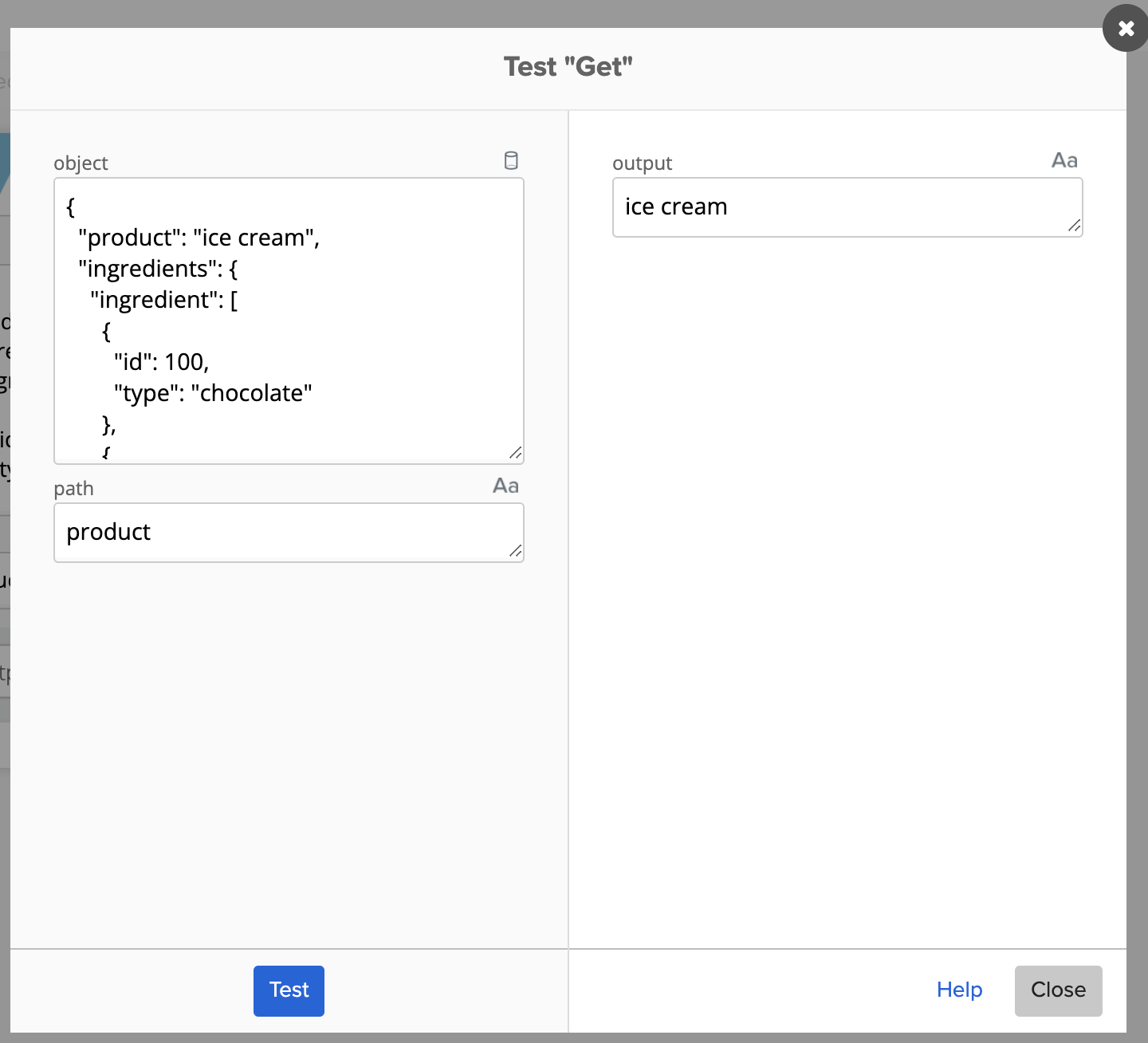

Testing this card:

Let’s look at more examples.

Using the path ingredients.ingredient.0 will result in:

{
  "id": 100,
  "type": "chocolate"
}

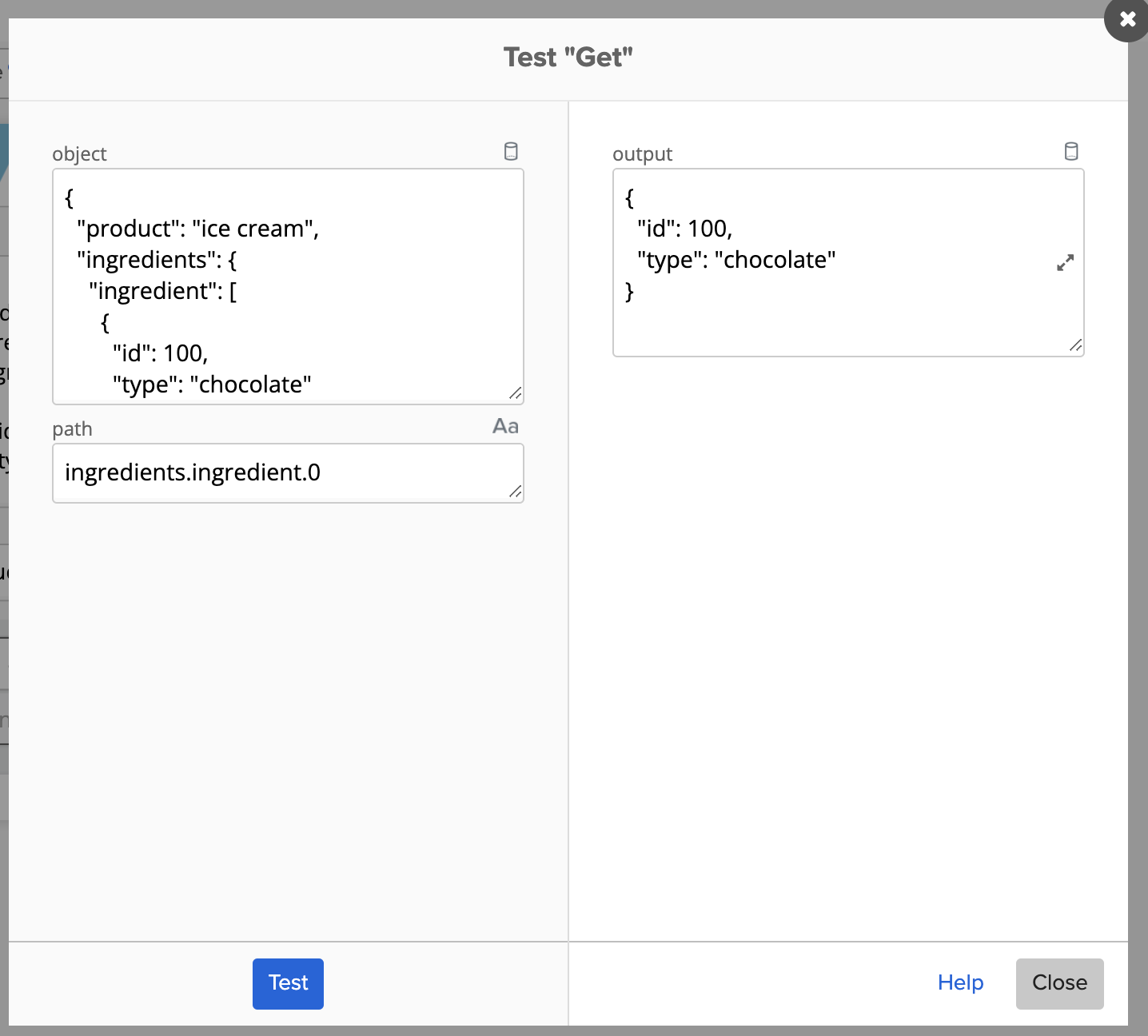

Result when testing using the Object – Get card:

One thing to remember is that the output type needs to match the JSON type. If the path you entered retrieves plain text, the type should be Text. If the path retrieves an object, then the type should be set to Object (or you will get incorrect results).

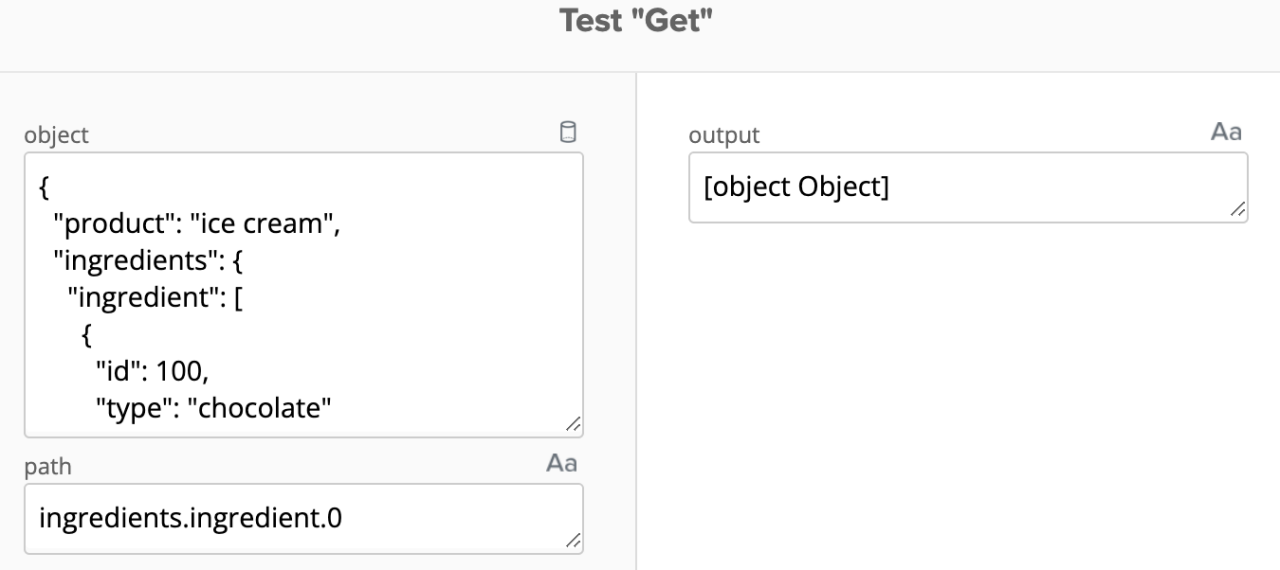

Using the above example, setting the output type to Text will result in this:

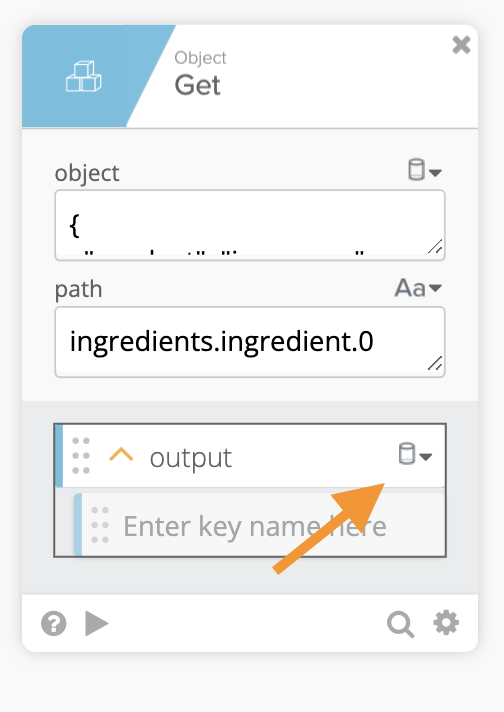

Setting correct output type:

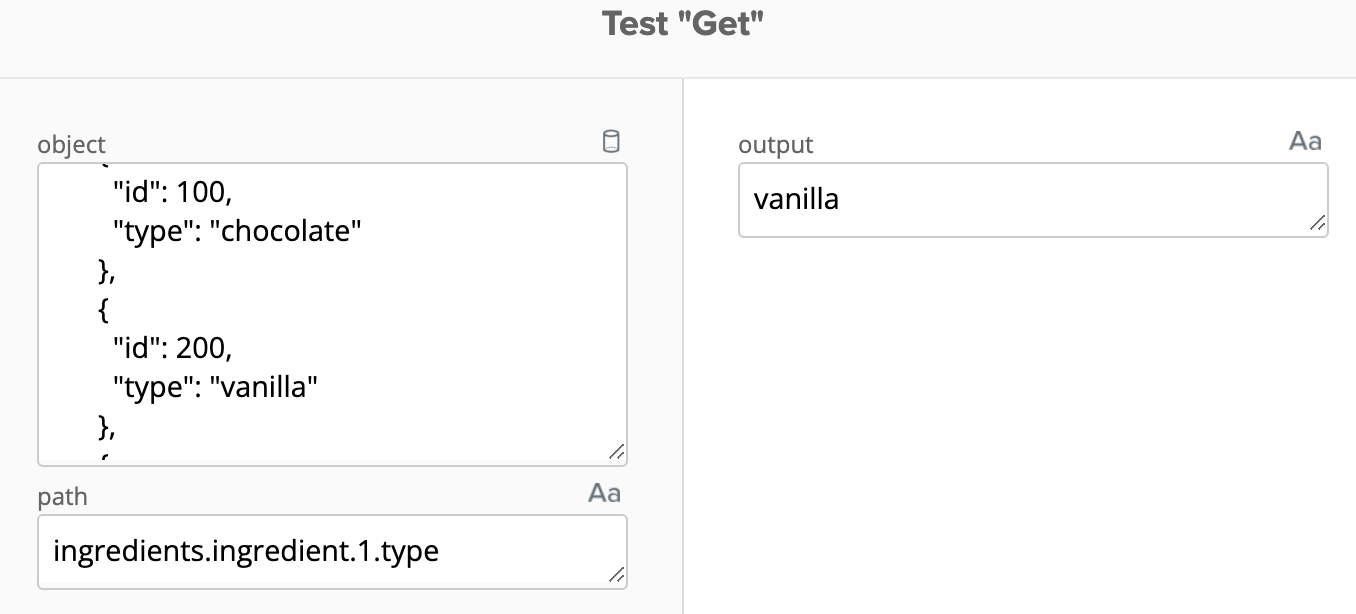

This example shows how to access an array with ingredients.ingredient.1.type:

Note that the output type is set to Text as the output is a string.

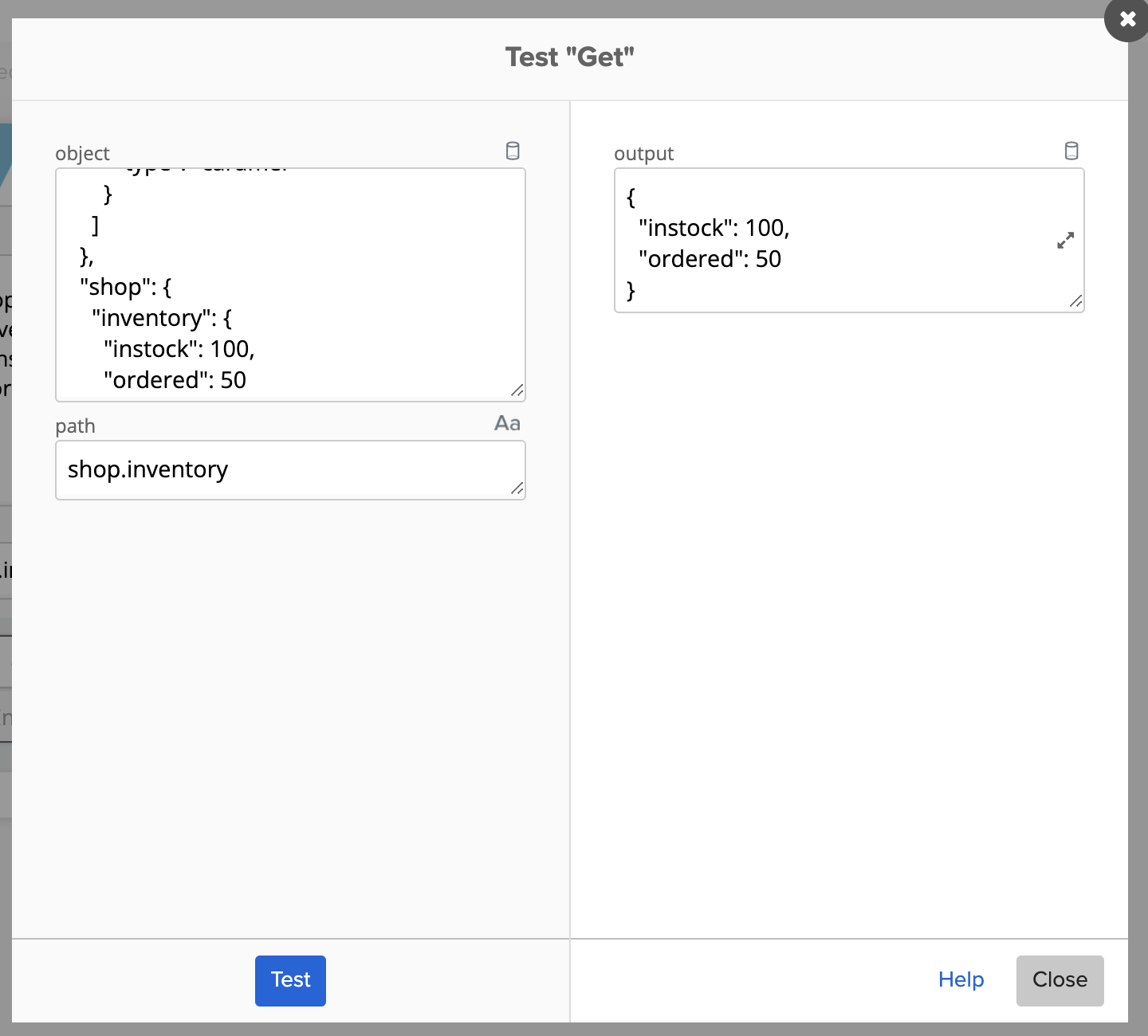

One more example using the path of shop.inventory will return

{
   "instock": 100,
   "ordered": 50
}

Note that the output type is set to Object as the output is an object.

Using Object – Get Multiple to read JSON

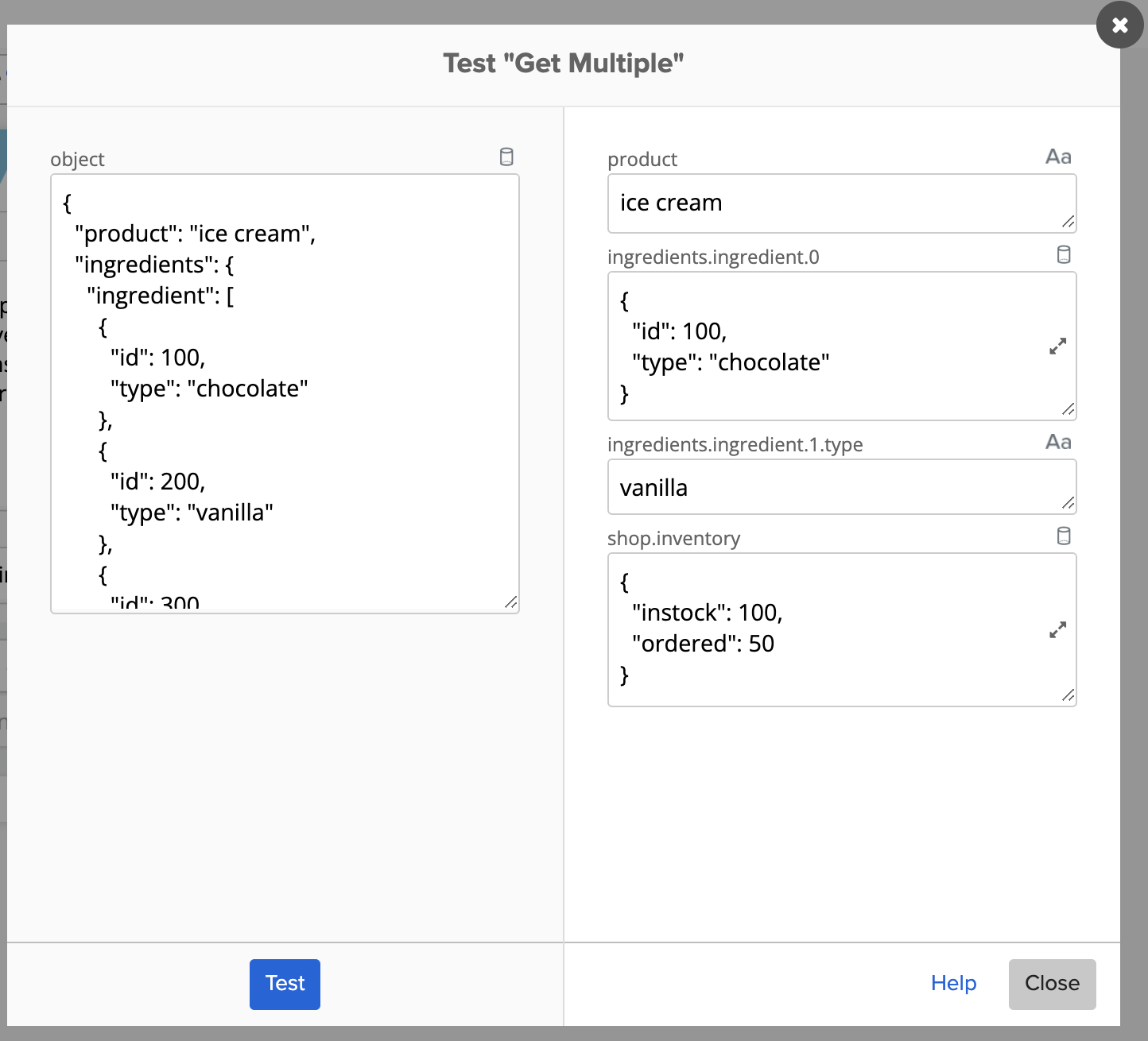

Object – Get outputs a single JSON path. The Object – Get Multiple card works similarly and can output multiple paths. You enter any number of paths you need as output:

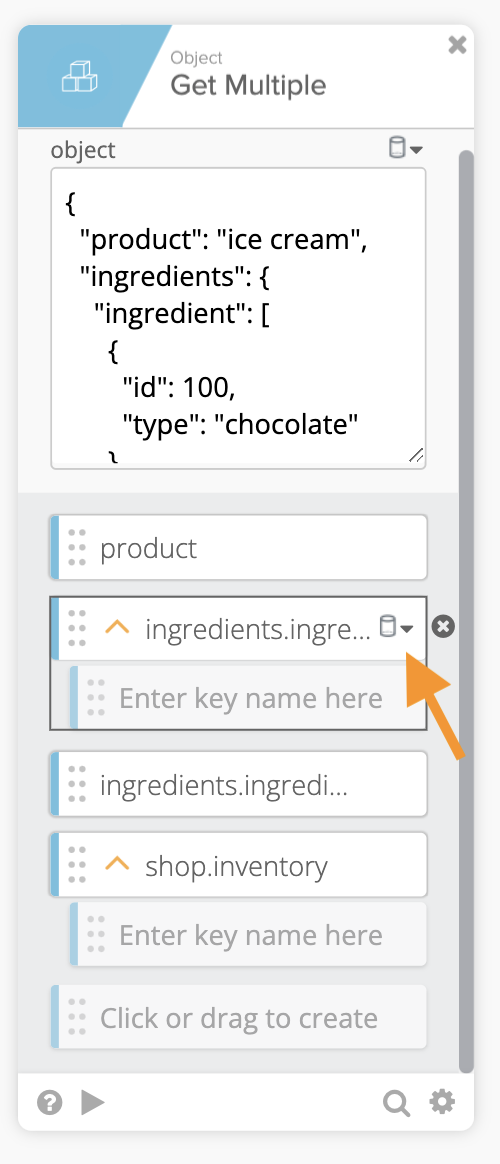

Note that the output type is set on the path when using the Object – Get Multiple card.

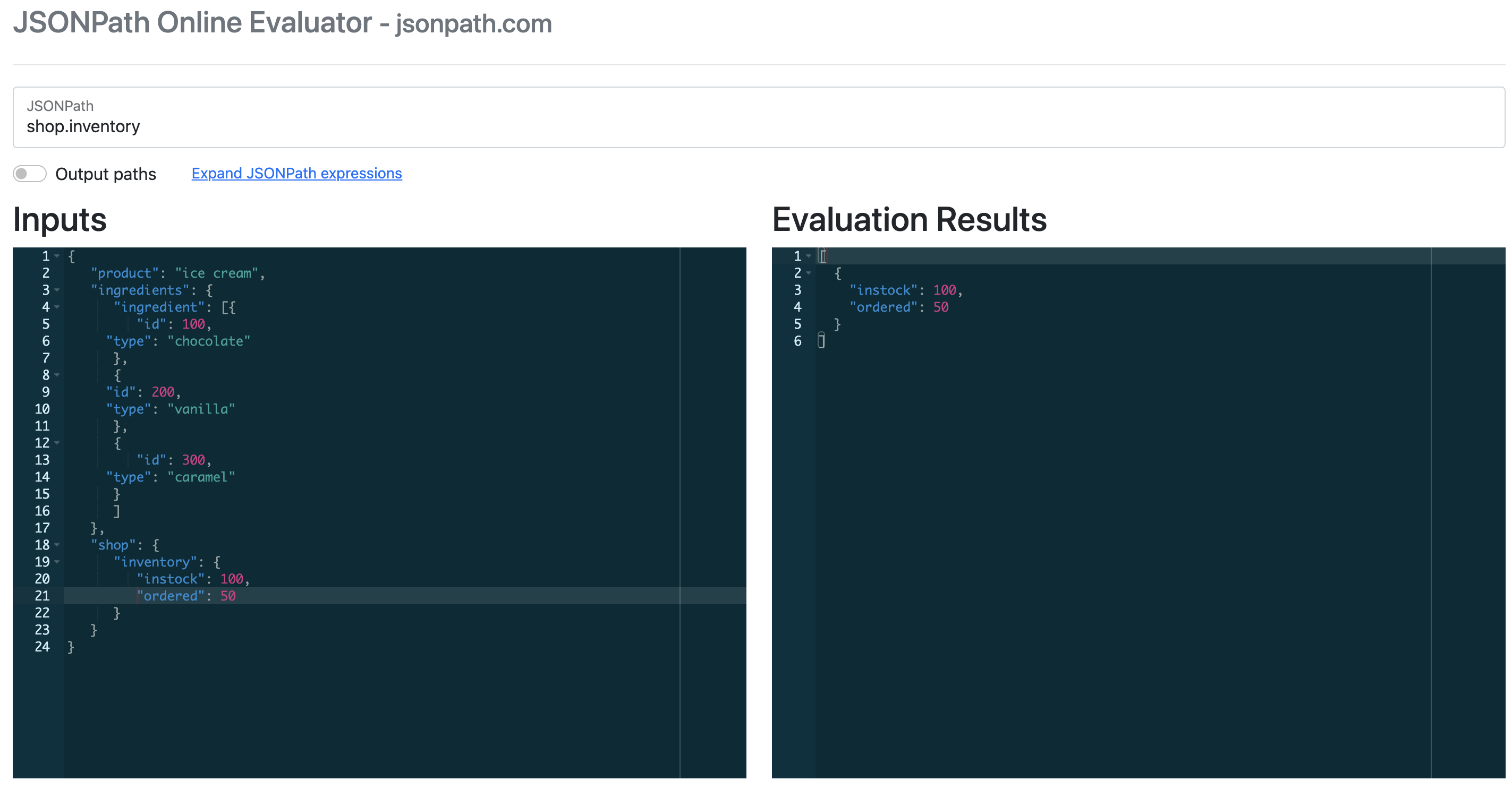

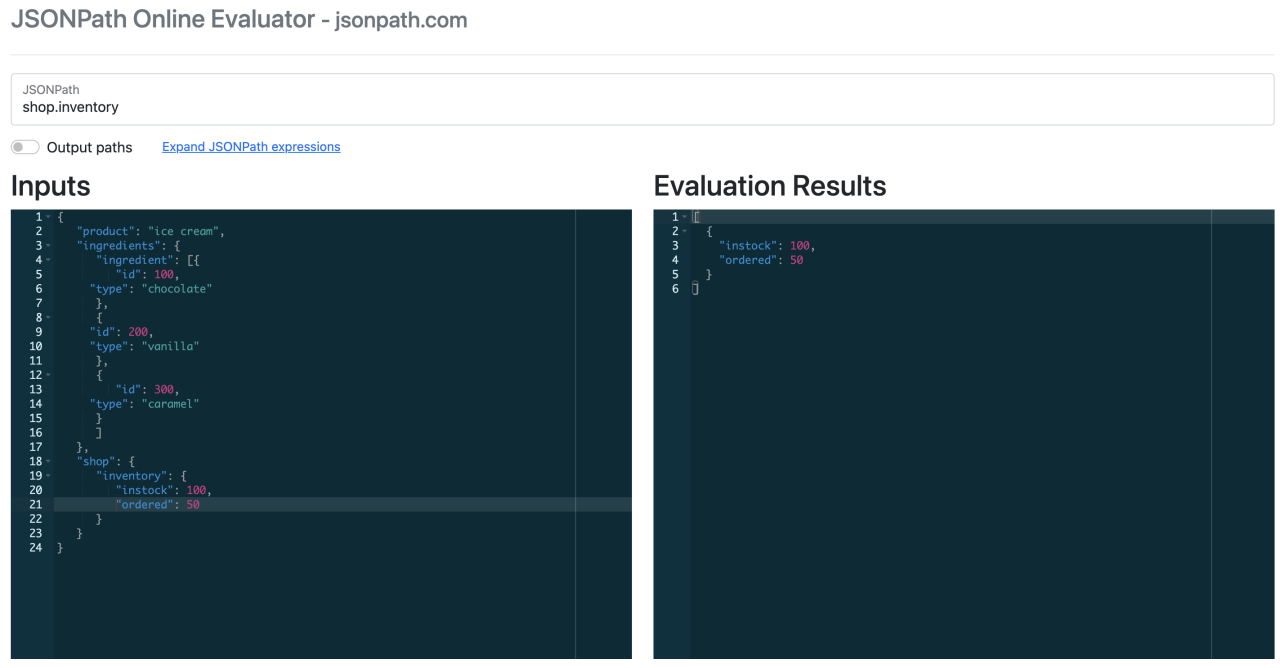

The JSONPath Online Evaluator is an online tool where you can test your dot-notation paths.

If you need to validate (and format) a JSON sample, use the JSON Lint tool.

Get your Workflows questions answered

Do you have a question about Okta Workflows? Not sure how to build a flow? Join the weekly community office hours to get help.
